This is the first part of the series Mathematics for Machine Learning with Python.

Intro to equations

Starting with an equation: 2x + 3 = 9 to find the the x. x = 3

x = -41
x + 16 == -25 # True

Working with fractions

x = 45
x / 3 + 1 == 16 # True

Variables on both sides

x = 1.5
3 * x + 2 == 5 * x -1 # True

Linear Equations

Creating a dataframe with the x and y columns and their values

import pandas as pd
from matplotlib import pyplot as plt

df = pd.DataFrame({'x': range(-10, 11)})
df['y'] = (3 * df['x'] - 4) / 2

A simple way to plot and show the graph

plt.plot(df.x, df.y, color="grey")
plt.xlabel('x')
plt.ylabel('y')
plt.grid()
plt.show()

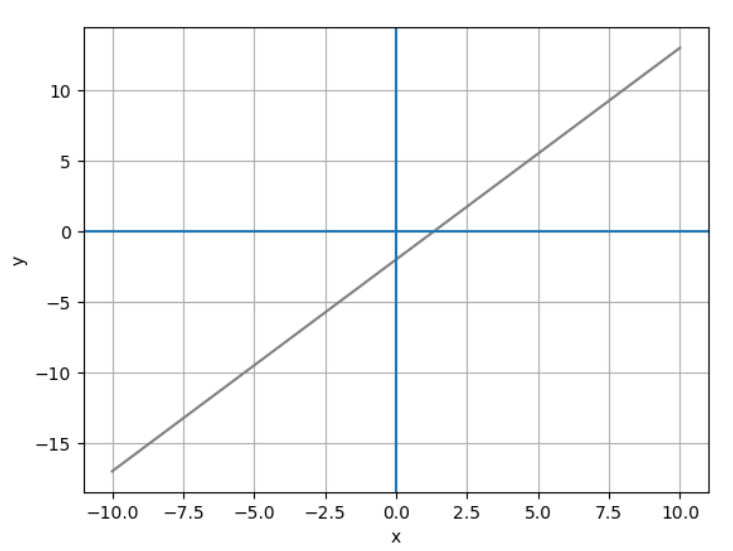

simple graph

Annotate the points when x = 0 and y = 0

plt.annotate('x-intercept', (1.333, 0))
plt.annotate('y-intercept', (0, -2))
plt.show()

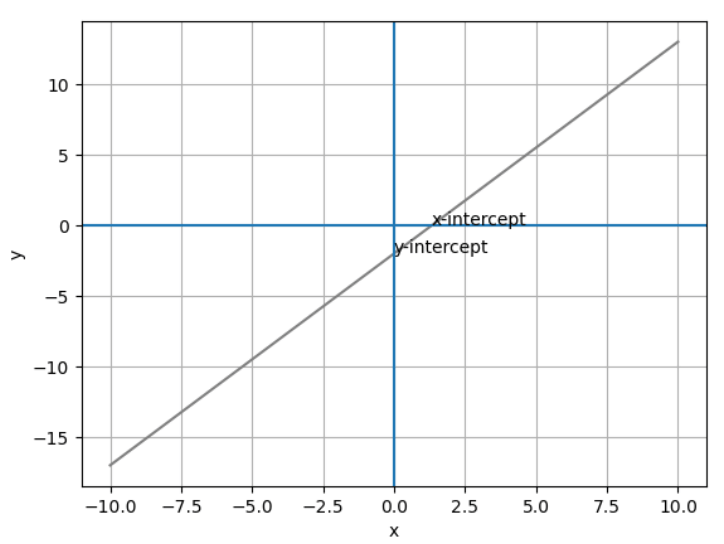

graph with intercept

Finding the slope through the equation:

slope = Δy/Δx

The slope is usually represented by the letter m

m = (y2 - y1) / (x2 - x1)

Getting these two points, we can infer the slope value: (0, -2), (6, 7)

m = (7 - (-2)) / (6 - 0)
m = 1.5

It means that when moving one unit to the right (x-axis), we need to move 1.5 units up (y-axis) to get back to the line.

m = 1.5
yInt = -2
mx = [0, 1]
my = [yInt, yInt + m]

Systems of Equations

In equations with two variables x and y, we can use elimination to find the values when the intersect with each other

x + y = 16
10x + 25y = 250

With elimination, you'll find out that x = 10 and y = 6 when the lines intersect.

x = 10
y = 6
print((x + y == 16) & ((10 * x) + (25 * y) == 250))

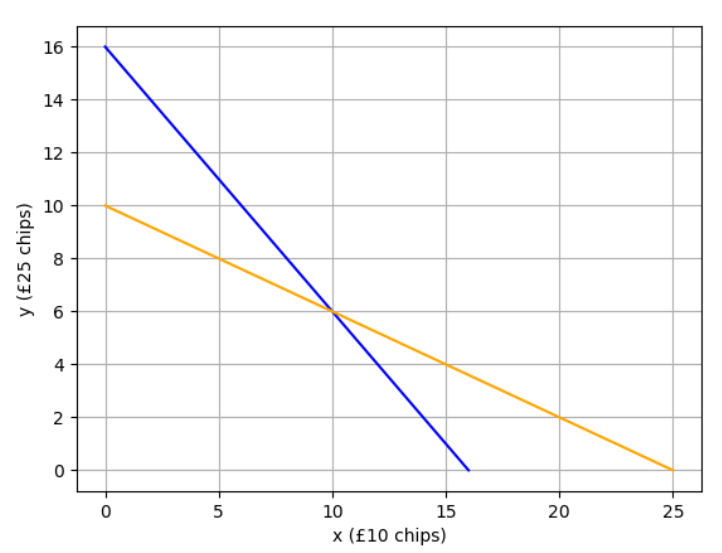

When plotting the lines of those equations, we get this graph

Here's how we generate the code

chipsAll10s = [16, 0]
chipsAll25s = [0, 16]

valueAll10s = [25, 0]
valueAll25s = [0, 10]

plt.plot(chipsAll10s, chipsAll25s, color='blue')
plt.plot(valueAll10s, valueAll25s, color="orange")
plt.xlabel('x (£10 chips)')
plt.ylabel('y (£25 chips)')
plt.grid()

plt.show()

Exponentials & Logarithms

Exponentials have a simple case that's squaring a number: 2² = 2 x 2 = 4.

2 ** 2 # 4

Radicals (roots) are useful to calculate a solution for exponential

?² = 9
√9 = 3
∛64 = 4

In Python we can use math.sqrt to get the square root of a number and a trick to get the cube root.

math.sqrt(25) # 5
round(64 ** (1. / 3)) # 64 ^ 1/3 = ∛64 = 4

To find the exponent for a given number and base, we use the logarithm

4 ^ ? = 16
log₄(16) = 2

The math module has a log function that receives the number and the base

math.log(16, 4) # 2.0
math.log(29) # 3.367295829986474
math.log10(100) # 2.0

Solving equations with exponentials:

2y = 2(x^4)((x^2 + 2x^2) / x^3)
2y = 2(x^4)(3x^2 / x^3)
2y = 2(x^4)(3x^-1)
2y = 6(x^3)
y = 3(x^3)

We can exemplify this with Python

df = pd.DataFrame ({'x': range(-10, 11)})

# add a y column by applying the slope-intercept equation to x
df['y'] = 3 * df['x'] ** 3 # this is the equation we simplified above

plt.plot(df.x, df.y, color="magenta")
plt.xlabel('x')
plt.ylabel('y')
plt.grid()
plt.axhline()
plt.axvline()
plt.show()

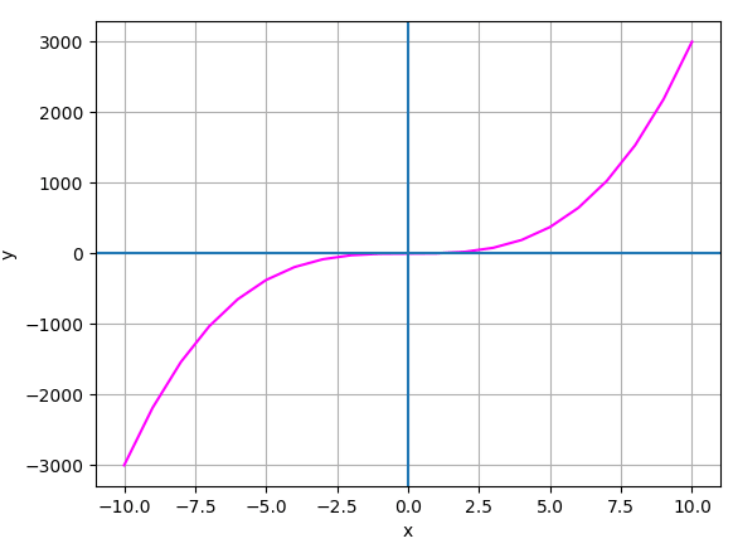

It generates this graph:

Polynomials

A polynomial is an algebraic expression containing one or more terms.

12x³ + 2x - 16

The terms themselves include:

  • Two coefficients(12 and 2) and a constant (-16)
  • A variable (x)
  • An exponent (³)

Simplifying the polynomial:

x³ + 2x³ - 3x - x + 8 - 3
3x³ - 4x + 5

And we can compare both equations in Python

from random import randint

x = randint(1,100)

(x**3 + 2 * x**3 - 3 * x - x + 8 - 3) == (3 * x**3 - 4 * x + 5)
# True

Factorization

Factorization is the process of restating an expression as the product of two expressions.

-6x²y³

You can get this value by performing the following multiplication:

(2xy²)(-3xy)

So, we can say that 2xy² and -3xy are both factors of -6x²y³.

from random import randint

x = randint(1,100)
y = randint(1,100)

(2 * x * y**2) * (-3 * x * y) == -6 * x**2 * y**3

The Greatest Common Factor (GCF) is the highest value that is a multiple of both number n1 and number n2.

We can apply this idea to polynomials too.

15x²y
9xy³

The GCF of this polynomial is 2xy

Factorization is useful for expressions like the differences of squares:

x² - 9
x² - 3²
(x - 3)(x + 3)

We generalize this idea to this expression: a² - b² = (a - b)(a + b)

Ensure this is true:

from random import randint

x = randint(1,100)

(x**2 - 9) == (x - 3) * (x + 3)

This is also true for perfect squares

x² 10x + 25 (x - 5)(x + 5) (x + 5)²

And we can generalize to this expression: (a + b)² = a² + 2ab + b²

Ensure this with Python

from random import randint

a = randint(1,100)
b = randint(1,100)

a**2 + b**2 + (2 * a * b) == (a + b)**2

Quadratic Equations

Use the complete square method to solve quadratic equations. Take the following equation as an example:

x² + 24x + 12²

Can be factored into this:

(x + 12)²

OK, so how does this help us solve a quadratic equation? Well, let's look at an example:

y = x² + 6x - 7

Let's start as we've always done so far by restating the equation to solve x for a y value of 0:

x² + 6x - 7 = 0

Now we can move the constant term to the right by adding 7 to both sides:

x² + 6x = 7

OK, now let's look at the expression on the left: x² + 6x. We can't take the square root of this, but we can turn it into a trinomial that will factor into a perfect square by adding a squared constant. The question is, what should that constant be? Well, we know that we're looking for an expression like x² + 2cx + c², so our constant c is half of the coefficient we currently have for x. This is 6, making our constant 3, which when squared is 9 So we can create a trinomial expression that will easily factor to a perfect square by adding 9; giving us the expression x² + 6x + 9.

However, we can't just add something to one side without also adding it to the other, so our equation becomes:

x² + 6x + 9 = 16

So, how does that help? Well, we can now factor the trinomial expression as a perfect square binomial expression:

(x + 3)² = 16

And now, we can use the square root method to find x + 3:

x + 3 = √16

So, x + 3 is -4 or 4. We isolate x by subtracting 3 from both sides, so x is -7 or 1:

x = -7, 1

Functions

Functions are usually the same as it's in programming. Data in, data out.

f(x) = x² + 2
f(3) = 11
def f(x):
  return x**2 + 2

f(3) # 11

Bounds of function: domain

Imagine a function g(x) = (12 / 2x)², where {x ∈ ℝ | x ≠ 0}

In Python:

def g(x):
  if x != 0:
    return (12 / 2 * x)**2

x = range(-100, 101)
y = [g(a) for a in x]

Conditional: for k(x)

{
  0, if x = 0,
  1, if x = 100
}

In Python:

def k(x):
  if x == 0:
    return 0
  elif x == 100:
    return 1

x = range(-100, 101)
y = [k(a) for a in x]
